Hotwatt Tubular Heater |
| |

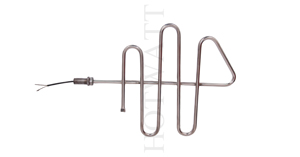

Tubular heaters are the most rugged, dependable and versatile heating elements. They can be used in almost every application. Hotwatt’s manufactures tubular heaters custom designed to suit your needs. They are available in a wide variety of shapes. The tubular heaters are swaged to ensure a high heat transfer rate and excellent insulation even at high sheath temperatures. |
| |
| Application |
| Radiant Heating |
Flue gas cleaning ( desulphurization) |
| Ovens, Dryers and Dehumidifier. |
Dies and hot runner Manifolds. |
| Milled groove. |
High temperature resins. |
| Sealing Bars |
Convection - Air and Gas. |
| |
|
|
| |
| Features |
Features:
• Versatile design and rugged build.
• Easy to install.
• Machine assisted precise resistance wire wounding for superior heat transfer
And long heater life.
• Custom- formed to meet your specifications.
|
|
| |
| Application |
| Length |
300 -1550mm |
400 - 2100mm |
| Tube Dia |
6 -20mm |
6 -20mm |
| Maximum Current |
12 A |
15 A |
| Nominal Voltage |
230 / 415 V |
230 / 415V |
| Wattage |
±10% |
±10% |
| Dielectric Strength |
1.5 HV |
1.5 HV |
| Insulation MW |
>5Ω |
>5Ω |
| Leakage Current |
<0.5 mA |
<0.5 mA |
| Minimum Unheated |
30mm |
35mm |
| Terminal Pins |
M3 x .50mm/ Plain post |
M4 x .70mm |
|
| |
|
|
